Part 5: Find & Fix Errors in Statistics¶

Overview¶

Over time, errors may appear in the statistical database for various reasons. This part describes the different types of errors, how to identify them, and methods to correct them. Understanding the error type is the first step toward fixing it.

For each type of error, we will cover:

Error Type Definition
The causes of the error
The manifestation of the error in the UI and database
How to detect the error mainly using SQL queries
How to fix the error (if possible) using Home Assistant tools,SQL queries or homeassistant-statistics integration

Quick jump table

Error Type	Detection	Fix
Missing Statistics (Data Gaps)	gap_detect	gap_fix
Invalid Data / Spikes	spike_detect	spike_fix
Statistics on Deleted Entities	deleted_detect	deleted_fix
Statistics on Orphaned Entities	orphan_detect	orphan_fix
Renamed Entities	renamed_detect	renamed_fix
Counter Reset Not Detected	reset_detect	reset_fix
Wrong Mean Type	meantype_detect	meantype_fix
Negative Values in Total_Increasing	neg_detect	neg_fix
Orphaned Statistics Metadata	orphmeta_detect	orphmeta_fix

Most errors can be prevented by following best practices.

Validate before deploying
- Test sensor configuration in developer template tool
- Check state_class matches data type
- Verify units before adding statistics
Use availability templates
- Filter out 'unavailable' and 'unknown' states
- Validate numeric values
- Prevent glitch propagation
Plan changes carefully
- Don't change units mid-stream
- Rename entities via statistics migration tools
- Test state_class changes on non-production data
Regular monitoring
- Check Developer Tools → Statistics weekly
- Review Settings → System → Repairs
- Monitor log files for warnings
Backup before modifications
- Always backup home-assistant_v2.db before direct SQL
- Export critical statistics before migration
- Test fixes on database copy first

5.1 Missing Statistics¶

Description | Causes | Manifestation | Detection | Fix

Description

Periods where no statistics were recorded despite the entity existing and presumably having data. This is a common issue when the integration was not running, or home assistant was shutdown, or the sensor stopped delivering data.

Causes

Sensor/integration temporarily not delivering data (device offline, network issue)
Home Assistant was not running
Entity was excluded from recorder during that period
Statistics generation was disabled (state_class was temporarily removed)
Database write errors

Manifestation

Measurement entities:

Visible gaps/holes in history graphs
Flat lines where interpolation fails
Missing data points in min/max/mean charts

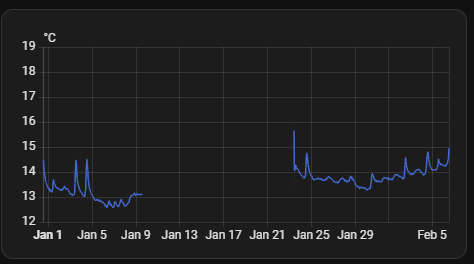

Missing Temp

Counter entities:

Bars with zero value in bar chart (energy dashboard)
Discontinuity in cumulative sum (A large variation crushes the values around it.)
Appears as zero consumption for that period

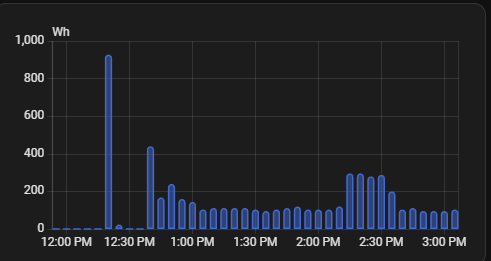

Missing states

Detection

The SQL queries differs for measurement and counter entities.

Query for Measurement

-- Check for gaps in statistics. Only shows rows with small gaps (>1h) and large gaps (>2h)
WITH gap_analysis AS (
  SELECT
    datetime(start_ts, 'unixepoch', 'localtime') as period,
    mean,
    start_ts,
    LAG(start_ts) OVER (ORDER BY start_ts) as previous_ts,
    start_ts - LAG(start_ts) OVER (ORDER BY start_ts) as gap_seconds
  FROM statistics
  WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.temperature_entree')
)
SELECT
  period,
  mean,
  gap_seconds / 3600.0 as gap_hours,
  CASE
    WHEN gap_seconds > 7200 THEN '⚠️ LARGE GAP'
    WHEN gap_seconds > 3600 THEN '⚠️ GAP DETECTED'
  END as gap_severity
FROM gap_analysis
WHERE gap_seconds > 3600  -- Only show gaps > 1 hour
ORDER BY gap_seconds DESC  -- Show largest gaps first
LIMIT 50;

period	mean	gap_hours	gap_severity
2025-01-22 19:00:00	17.69790881333039	7	⚠️ LARGE GAP
2023-12-03 17:00:00	19.725162957811452	3	⚠️ LARGE GAP
2023-09-21 16:00:00	22.09918343405555	2	⚠️ GAP DETECTED

Query for Counter

-- Check gap in counter statistics
-- This version shows the records before and after each gap for better context:
SELECT
  datetime(s1.start_ts, 'unixepoch', 'localtime') as last_record_before_gap,
  s1.state as state_before,
  s1.sum as sum_before,
  '⚠️ GAP DETECTED' as gap_indicator,
  ROUND((s2.start_ts - s1.start_ts) / 3600.0, 1) as gap_hours,
  datetime(s2.start_ts, 'unixepoch', 'localtime') as first_record_after_gap,
  s2.state as state_after,
  s2.sum as sum_after,
  s2.sum - s1.sum as sum_change_across_gap,
  CASE
    WHEN s2.sum = s1.sum THEN '❌ No consumption recorded (sum unchanged)'
    WHEN s2.state < s1.state THEN '⚠️ Counter may have reset during gap'
    ELSE '⚠️ Consumption during gap unknown'
  END as gap_impact
FROM statistics s1
JOIN statistics s2 ON s2.metadata_id = s1.metadata_id
  AND s2.start_ts = (
    SELECT MIN(start_ts)
    FROM statistics
    WHERE metadata_id = s1.metadata_id
    AND start_ts > s1.start_ts
  )
WHERE s1.metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.east')
  AND (s2.start_ts - s1.start_ts) > 3600
ORDER BY gap_hours DESC
LIMIT 50;

last before gap	state before	sum before	gap indicator	gap hours	first after gap	state after	sum after	sum change across gap	gap impact
2026-01-15 08:00:00	1220.5	1220.5	⚠️ GAP DETECTED	6.0	2026-01-15 14:00:00	1250.5	1250.5	30.0	⚠️ Consumption during gap
2026-01-20 03:00:00	1305.2	1305.2	⚠️ GAP DETECTED	3.0	2026-01-20 06:00:00	1305.2	1305.2	0.0	❌ No consumption recorded

Missing Statistics Fix

For measurement entities (e.g., temperature, humidity): there is not much that can be done. We cannot guess what the values would have been during the gap. The graph will simply show a blank area for the missing period. This is generally acceptable — it honestly reflects that no data was collected.

For counter entities (e.g., energy, water, gas): while we also cannot guess the actual consumption pattern during the gap, the real problem is what happens after the gap. The first record after the gap contains the entire accumulated consumption for the missing period in a single hourly entry. This creates an ugly spike on bar graphs (e.g., the energy dashboard showing 30 kWh in one hour instead of ~6 kWh/h spread over 5 hours).

The fix is to insert interpolated rows that distribute the consumption evenly across the gap.

Example (from the detection query above):

Gap: 2026-01-15 08:00 → 14:00 (6 hours gap = 5 missing entries at 09, 10, 11, 12, 13)
sum before gap: 1220.5, after gap: 1250.5 → delta = 30.0
state before gap: 1220.5, after gap: 1250.5 → delta = 30.0
Interpolation: each missing row gets a consumption increment (delta) of 30.0 / 5 = 6.0

The interpolated rows to insert would be:

start_ts (as datetime)	state	sum
2026-01-15 09:00:00	1226.5	1226.5
2026-01-15 10:00:00	1232.5	1232.5
2026-01-15 11:00:00	1238.5	1238.5
2026-01-15 12:00:00	1244.5	1244.5
2026-01-15 13:00:00	1250.5	1250.5

After inserting these rows in the statistics table, the first record after the gap (14:00) no longer shows a 30 kWh spike — the consumption is spread evenly across the missing hours.

To insert the interpolated rows, you can use the following SQL query:

-- Example: Insert interpolated rows for a counter gap
-- Adjust metadata_id, timestamps, and values to match your specific gap
INSERT INTO statistics (metadata_id, start_ts, created_ts, state, sum, mean, min, max)
VALUES
  (42, strftime('%s', '2026-01-15 09:00:00'), strftime('%s', 'now'), 1226.5, 1226.5, NULL, NULL, NULL),
  (42, strftime('%s', '2026-01-15 10:00:00'), strftime('%s', 'now'), 1232.5, 1232.5, NULL, NULL, NULL),
  (42, strftime('%s', '2026-01-15 11:00:00'), strftime('%s', 'now'), 1238.5, 1238.5, NULL, NULL, NULL),
  (42, strftime('%s', '2026-01-15 12:00:00'), strftime('%s', 'now'), 1244.5, 1244.5, NULL, NULL, NULL),
  (42, strftime('%s', '2026-01-15 13:00:00'), strftime('%s', 'now'), 1250.5, 1250.5, NULL, NULL, NULL);

Important

mean, min, max are set to NULL since we don't know the actual values during the gap.
The metadata_id must match the entity's id in statistics_meta.
The start_ts values must be Unix timestamps (use strftime('%s', '2026-01-15 09:00:00') in SQLite).
Always work on a backup copy of the database first.
If sum did not change across the gap (delta = 0), there is no consumption to distribute — no fix is needed.

If you do not fill confortable using SQL, you can use the homeassistant-statistics integration. For that you first need to write a file (e.g.fix_missing_data.csv) with the delta values to fix:

statistic_id,start,unit,delta
sensor:linky_east,2026-01-15 09:00:00,kWh,6
sensor:linky_east,2026-01-15 10:00:00,kWh,6
sensor:linky_east,2026-01-15 11:00:00,kWh,6
sensor:linky_east,2026-01-15 12:00:00,kWh,6
sensor:linky_east,2026-01-15 13:00:00,kWh,6

You can use the service: import_statistics.import_from_file to import the file.

action: import_statistics.import_from_file
data:
  filename: fix_missing_data.csv
  decimal: dot ('.')

5.2 Spikes / Invalid values¶

Description | Causes | Manifestation | Detection | Fix

Description

Statistics contain obviously wrong values due to sensor glitches, measurement errors, or data corruption.

Causes

Sensor hardware malfunction (reading errors)
Communication interference (corrupt packets)
Integration bugs (incorrect parsing)
Sensor calibration issues
Power fluctuations affecting readings
No validation in template sensors

Spike Manifestation

Measurement entities:

Extreme outliers in min/max values
Impossible values (e.g., -273.15°C temperature, 150% humidity)
Single extreme spikes followed by return to normal
Affects mean calculation for that period

Temperature readings:
12:00 → mean: 21.5°C, min: 21.2°C, max: 21.8°C  [NORMAL]
13:00 → mean: 45.2°C, min: 21.5°C, max: 89.7°C  [SPIKE ERROR]
14:00 → mean: 21.8°C, min: 21.6°C, max: 22.0°C  [BACK TO NORMAL]

Counter entities:

Massive positive spike followed by negative spike (or vice versa)
Sum jumps unrealistically high then drops back
Can trigger false counter reset detection
Creates artificial consumption peaks in energy dashboard

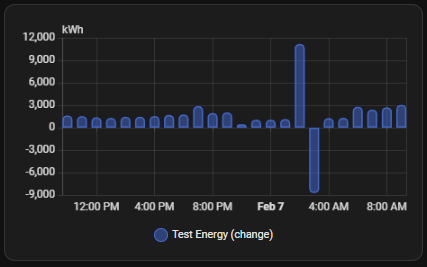

counter spike

Spike Detection

The SQL queries differs for measurement and counter entities.

Spike Detection for Measurement

-- Find outliers (values > 3 standard deviations from mean)
WITH stats AS (
  SELECT
    AVG(mean) as avg_mean,
    AVG(mean * mean) - AVG(mean) * AVG(mean) as variance
  FROM statistics
  WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.temperature')
)
SELECT
  datetime(start_ts, 'unixepoch', 'localtime') as period,
  mean,
  min,
  max,
  CASE
    WHEN ABS(mean - (SELECT avg_mean FROM stats)) > 3 * SQRT((SELECT variance FROM stats))
    THEN '⚠️ OUTLIER'
    ELSE 'OK'
  END as outlier_check
FROM statistics
WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.temperature')
ORDER BY start_ts DESC;

Spike Detection for Counter

-- Find invalid spikes in counter statistics
WITH counter_analysis AS (
  SELECT
    datetime(start_ts, 'unixepoch', 'localtime') as period,
    state,
    sum,
    LAG(state) OVER (ORDER BY start_ts) as previous_state,
    LAG(sum) OVER (ORDER BY start_ts) as previous_sum,
    state - LAG(state) OVER (ORDER BY start_ts) as state_change,
    sum - LAG(sum) OVER (ORDER BY start_ts) as consumption,
    -- Calculate average consumption over last 24 periods
    AVG(sum - LAG(sum) OVER (ORDER BY start_ts)) OVER (
      ROWS BETWEEN 24 PRECEDING AND 1 PRECEDING
    ) as avg_24h_consumption,
    (sum - LAG(sum) OVER (ORDER BY start_ts)) as hourly_consumption
  FROM statistics
  WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.energy_total')
)
SELECT
  period,
  state as counter_value,
  sum as cumulative_sum,
  consumption as hourly_consumption,
  ROUND(avg_24h_consumption, 2) as avg_24h,
  ROUND(consumption / NULLIF(avg_24h_consumption, 0), 1) as spike_multiplier,
  CASE
    WHEN consumption IS NULL THEN 'First record'
    WHEN avg_24h_consumption = 0 THEN '⚠️ No baseline yet'
    WHEN consumption < 0 THEN '❌ NEGATIVE consumption (impossible!)'
    WHEN consumption > avg_24h_consumption * 10 THEN '❌ EXTREME SPIKE (>10x normal)'
    WHEN consumption > avg_24h_consumption * 5 THEN '⚠️ LARGE SPIKE (>5x normal)'
    WHEN consumption > avg_24h_consumption * 3 THEN '⚠️ SPIKE DETECTED (>3x normal)'
    WHEN ABS(state_change) < 0.001 AND consumption > 0 THEN '⚠️ Sum increased but state unchanged'
    ELSE 'OK'
  END as spike_status,
  CASE
    WHEN consumption < 0 THEN 'Counter decreased (hardware error or missed reset)'
    WHEN consumption > avg_24h_consumption * 10 THEN 'Unrealistic consumption spike'
    WHEN ABS(state_change) < 0.001 AND consumption > 0 THEN 'Sum/state mismatch'
    ELSE ''
  END as issue_description
FROM counter_analysis
WHERE consumption IS NOT NULL
  AND avg_24h_consumption > 0
  AND (
    consumption < 0
    OR consumption > avg_24h_consumption * 3
    OR (ABS(state_change) < 0.001 AND consumption > 0)
  )
ORDER BY ABS(consumption / NULLIF(avg_24h_consumption, 1)) DESC
LIMIT 50;

period	counter_value	cumulative_sum	hourly_consumption	avg_24h	spike_multiplier	spike_status	issue_description
2026-01-15 13:00:00	1255.2	1255.2	2500.0	2.5	1000.0	❌ EXTREME SPIKE (>10x)	Unrealistic consumption spike
2026-01-20 08:00:00	1305.8	1305.8	-45.2	2.3	-19.7	❌ NEGATIVE consumption	Counter decreased
2026-02-01 14:00:00	1450.0	1450.0	18.5	2.4	7.7	⚠️ LARGE SPIKE (>5x)

Spike Fix

For measurement entities (e.g., temperature, humidity): the simplest fix is to delete the spike record. Since measurement statistics are independent of each other (no cumulative values), removing one row just creates a small gap in the graph — which is preferable to a misleading spike.

-- Delete a specific spike record for a measurement entity
-- First identify the spike using the detection query, then delete by start_ts
DELETE FROM statistics
WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.temperature')
  AND start_ts = strftime('%s', '2026-01-15 13:00:00');

For counter entities (e.g., energy, water, gas): spikes in counters typically appear as a glitch pair — a spike record with abnormally high consumption followed by a compensating record with negative or near-zero consumption. Simply deleting these records would break the cumulative sum chain. Instead, replace both records with linearly interpolated values.

Example:

Suppose the detection query found a spike at 13:00 with consumption of 2500 kWh (normal baseline ~2.5 kWh/h), followed by a compensating drop at 14:00:

period	sum	consumption	status
12:00	1250.0	2.5	OK (before spike)
13:00	3750.0	2500.0	❌ SPIKE
14:00	1255.0	-2495.0	❌ COMPENSATION
15:00	1257.5	2.5	OK (after glitch)

The fix: replace the two glitch records (13:00 and 14:00) with interpolated values based on the records before (12:00) and after (15:00):

Total real consumption over 3 hours (12:00→15:00): 1257.5 - 1250.0 = 7.5
Per hour: 7.5 / 3 = 2.5
Interpolated 13:00: sum = 1250.0 + 2.5 = 1252.5
Interpolated 14:00: sum = 1250.0 + 5.0 = 1255.0

-- Fix counter spike: update the two glitch records with interpolated values
-- Step 1: Update the spike record
UPDATE statistics
SET state = 1252.5, sum = 1252.5, mean = NULL, min = NULL, max = NULL
WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.energy_total')
  AND start_ts = strftime('%s', '2026-01-15 13:00:00');

-- Step 2: Update the compensation record
UPDATE statistics
SET state = 1255.0, sum = 1255.0, mean = NULL, min = NULL, max = NULL
WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.energy_total')
  AND start_ts = strftime('%s', '2026-01-15 14:00:00');

Important

Always work on a backup copy of the database first.
Verify the records before and after the glitch are valid before interpolating.
If the spike is a single record (no compensation drop), you can simply UPDATE it with an interpolated value based on the surrounding records.
After fixing, re-run the detection query to confirm the spike is gone.

5.3 Statistics on Deleted Entities¶

Description | Causes | Manifestation | Detection | Fix

Description Statistics remain in the database for entities that no longer exist in Home Assistant.

An entity is considered truly deleted when it has been removed from the active section of Entity Registry but still present in the deleted section. Entity Registry is the authoritative source that tracks all registered entities in HA. This is distinct from simply being absent from the states_meta table (see Important limitation below).

Causes

Entity was deleted or removed from configuration
Integration was uninstalled
Device was removed
Entity ID was changed without migration
Statistics were not purged when entity was deleted

Deleted Entities Manifestation

Statistics shown in Developer Tools → Statistics for non-existent entities
Orphaned statistic_id entries in statistics_meta
Wasted database space
Confusing in energy dashboard or history graphs
Entity appears in statistics but not in entity list

Example:

statistics_meta table:

statistic_id	source	unit
sensor.old_temperature	recorder	°C
sensor.removed_power_meter	recorder	W
sensor.current_temperature	recorder	°C

Detection

The SQL query below finds statistics_meta entries whose statistic_id does not appear in states_meta. This is a useful approximation but has an important limitation — see the warning below.

-- Find candidates: not present in recorder states metadata
-- indicates number of records attached to the deleted entity
SELECT sm.id as stats_meta_id,
       sm.statistic_id,
       sm.source,
       sm.unit_of_measurement,
       COUNT(s.id) as record_count,
       MIN(datetime(s.start_ts, 'unixepoch')) as first_record,
       MAX(datetime(s.start_ts, 'unixepoch')) as last_record
FROM statistics_meta sm
LEFT JOIN states_meta stm ON sm.statistic_id = stm.entity_id
LEFT JOIN statistics s ON sm.id = s.metadata_id
WHERE stm.entity_id IS NULL
GROUP BY sm.id, sm.statistic_id, sm.source, sm.unit_of_measurement
ORDER BY sm.statistic_id;

statistic_id	record_count	Issue
sensor.old_temperature	8760	← Has lots of data
sensor.failed_sensor	0	← Never generated data

Important limitation: states_meta is not a reliable indicator of entity existence

The query above checks whether a statistic_id is present in states_meta. However, absence from states_meta does not necessarily mean the entity has been deleted. The states_meta table only contains entries for entities that have had state changes recorded by the Recorder. An entity can be missing from states_meta while still being valid and active in Home Assistant in several situations:

Purged history: The Recorder's purge mechanism may have removed old states and states_meta entries, even though the entity still exists and is active.
Temporarily unavailable integrations: If an integration was offline or unavailable for a period, its entities may not have generated any state changes yet.
Newly added entities: An entity that was just registered but has not yet reported a state will not appear in states_meta.
Excluded from Recorder: Entities explicitly excluded from the Recorder via exclude filters will never appear in states_meta, but they still exist in HA.

The only authoritative source for determining whether an entity truly exists is the Entity Registry (entity_registry), which is managed in-memory by HA Core and persisted in .storage/core.entity_registry. This registry is not accessible via SQL — it requires the HA Python API (e.g., entity_registry.async_get(entity_id)).

Recommendation: Treat the SQL query results as candidates for deletion, not as a definitive list. Before deleting statistics, verify that the entity is genuinely absent by checking:

Developer Tools → States: Search for the statistic_id — if it appears, the entity still exists.
Settings → Devices & Services → Entities: Search for the entity — if listed, it is still registered.
Developer Tools → Statistics: If the entity shows a "Fix issue" button with a "delete" option, HA itself considers it deleted.

Deleted Entities Fix

Since the entity no longer exists, the statistics data is no longer useful. The fix is to delete all associated records from the three statistics tables: statistics, statistics_short_term, and statistics_meta.

The deletion must be done in the correct order — data tables first, then metadata — because statistics and statistics_short_term reference statistics_meta via metadata_id.

-- Step 1: Delete long-term statistics
DELETE FROM statistics
WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.old_temperature');

-- Step 2: Delete short-term statistics
DELETE FROM statistics_short_term
WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.old_temperature');

-- Step 3: Delete the metadata entry
DELETE FROM statistics_meta
WHERE statistic_id = 'sensor.old_temperature';

Important

Always work on a backup copy of the database first.
Use the detection query to identify the exact statistic_id before deleting.
Delete data tables (statistics, statistics_short_term) before statistics_meta to avoid foreign key issues.
After deleting, restart Home Assistant for changes to take effect.

5.4 Statistics on Orphaned Entities¶

Description | Causes | Manifestation | Detection | Fix

Description Orphaned entities are entities that exist in the database but are no longer claimed by any active integration. Unlike deleted entities (section 5.3) where the entity record is completely removed, orphaned entities remain in the states_meta table in a "zombie" state — still present but disconnected from any working integration.

Home Assistant considers an entity orphaned only after it has been unclaimed since the last restart. At restart, HA checks whether each entity is still claimed by an integration. If not, it writes a final state record with state = NULL to the states table, effectively marking the entity as orphaned.

Orphan statistics are the statistics records associated with these orphaned entities. They are typically not useful to retain because the source integration is no longer providing data and the entity will never receive new state updates.

Causes

Integration was removed or uninstalled
Integration is broken or no longer loading
Device was physically disconnected and removed from the integration
Integration was disabled in Settings → Devices & Services
HACS custom integration was uninstalled
Entity was created by an automation/script that no longer exists
Hardware failure on a device (e.g., Zigbee device died) and device was removed

Manifestation

Entity appears in Settings → Entities with state "unavailable" or "unknown" persistently
After a restart, entity state becomes NULL in the database
Statistics continue to exist in statistics_meta and statistics tables but no new data is generated
Entity may still appear in energy dashboard or history graphs with stale data
Developer Tools → Statistics shows the entity but with no recent records
Wasted database space from historical statistics that cannot be correlated with current system state
Confusing entries when querying statistics or browsing entity lists

Example:

After removing a Zigbee power meter integration and restarting HA:

Table	Entry	State
`states_meta`	`sensor.zigbee_power`	exists
`states` (latest)	`sensor.zigbee_power`	`NULL` ← marked orphaned at restart
`statistics_meta`	`sensor.zigbee_power`	exists (has_sum=1)
`statistics`	`sensor.zigbee_power`	8760 records ← historical data, no new data coming

Detection

Since HA marks orphaned entities with state = NULL at restart (see Description above), the detection method is: find entities whose most recent state is NULL, then check if they have associated statistics records.

The query below uses a subquery to find the latest state_id for each entity, ensuring we only check the most recent state. It then joins with statistics_meta and statistics to show how many statistics records are associated with each orphaned entity.

-- Find orphaned entities that have associated statistics
-- An orphaned entity has NULL as its most recent state (set by HA at restart)
SELECT stm.entity_id,
       st.state,
       datetime(st.last_updated_ts, 'unixepoch') as last_updated,
       sm.statistic_id,
       COUNT(s.id) as statistics_count
FROM states_meta stm
JOIN states st ON stm.metadata_id = st.metadata_id
LEFT JOIN statistics_meta sm ON stm.entity_id = sm.statistic_id
LEFT JOIN statistics s ON sm.id = s.metadata_id
WHERE st.state IS NULL
  AND st.state_id = (
    SELECT state_id FROM states
    WHERE metadata_id = stm.metadata_id
    ORDER BY last_updated_ts DESC LIMIT 1
  )
GROUP BY stm.entity_id, st.state, st.last_updated_ts, sm.statistic_id
ORDER BY st.last_updated_ts DESC;

The statistics_count column shows how many long-term statistics records exist for each orphaned entity. Entities with statistic_id = NULL and statistics_count = 0 are orphaned but have no statistics — they can be safely ignored in this context.

Orphaned Entities Fix

The fix is the same as for deleted entities (section 5.3): delete all associated records from the three statistics tables in the correct order.

-- Step 1: Delete long-term statistics
DELETE FROM statistics
WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.zigbee_power');

-- Step 2: Delete short-term statistics
DELETE FROM statistics_short_term
WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.zigbee_power');

-- Step 3: Delete the metadata entry
DELETE FROM statistics_meta
WHERE statistic_id = 'sensor.zigbee_power';

Important

Always work on a backup copy of the database first.
Use the detection query to identify the exact statistic_id before deleting.
Delete data tables (statistics, statistics_short_term) before statistics_meta.
After deleting, restart Home Assistant for changes to take effect.
You may also want to remove the orphaned entity itself via Settings → Entities → select entity → Delete.

5.5 Renamed Entities¶

Description | Causes | Manifestation | Detection | Fix

Description Entity was renamed, but statistics remain under the old entity_id, causing apparent data loss.

Causes

Entity renamed via UI (Settings → Entities)
Entity ID changed in configuration.yaml
Integration reorganized entity IDs
Device renamed causing entity_id change

Renamed Entities Manifestation

Statistics exist for old entity_id but not new one
Historical data appears "missing" for renamed entity
Two entries appear: one with history (old name), one without (new name)
Energy dashboard loses tracking continuity
Automations referencing old statistics fail

Example:

Old: sensor.living_room_temperature New: sensor.lounge_temperature

statistics_meta shows:

statistic_id	Last record
sensor.living_room_temperature	2025-12-15	← All history here
sensor.lounge_temperature	2025-12-16 →	← New data here

Renamed Entities Detection

-- Find statistics pairs that might be a renamed entity
-- Looks for: same unit/has_sum, one stopped recording, the other started around the same time
WITH entity_ranges AS (
  SELECT
    sm.id as meta_id,
    sm.statistic_id,
    sm.unit_of_measurement,
    sm.has_sum,
    MIN(s.start_ts) as first_record,
    MAX(s.start_ts) as last_record
  FROM statistics_meta sm
  JOIN statistics s ON sm.id = s.metadata_id
  GROUP BY sm.id
)
SELECT
  old.statistic_id as old_name,
  datetime(old.last_record, 'unixepoch', 'localtime') as old_last_record,
  new.statistic_id as new_name,
  datetime(new.first_record, 'unixepoch', 'localtime') as new_first_record,
  ROUND((new.first_record - old.last_record) / 3600.0, 1) as gap_hours
FROM entity_ranges old
JOIN entity_ranges new
  ON old.unit_of_measurement = new.unit_of_measurement
  AND old.has_sum = new.has_sum
  AND old.statistic_id != new.statistic_id
  AND old.last_record < new.first_record          -- old stopped before new started
  AND (new.first_record - old.last_record) < 86400 -- within 24 hours
ORDER BY gap_hours;

Renamed Entities Fix

The fix is to update the statistic_id in statistics_meta from the old name to the new name. This consolidates all historical data under the new entity name.

Before merging, verify that the new entity already has a statistics_meta entry. If it does, you need to move the statistics records from the old metadata_id to the new one, then delete the old metadata entry. If it doesn't, a simple rename suffices.

Case 1: New entity has no existing statistics (simple rename)

-- Simply rename the statistic_id in metadata
UPDATE statistics_meta
SET statistic_id = 'sensor.lounge_temperature'
WHERE statistic_id = 'sensor.living_room_temperature';

Case 2: New entity already has statistics (merge)

-- Step 1: Move old statistics to the new metadata_id
UPDATE statistics
SET metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.lounge_temperature')
WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.living_room_temperature');

-- Step 2: Move old short-term statistics
UPDATE statistics_short_term
SET metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.lounge_temperature')
WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.living_room_temperature');

-- Step 3: Delete the old metadata entry
DELETE FROM statistics_meta
WHERE statistic_id = 'sensor.living_room_temperature';

Important

Always work on a backup copy of the database first.
Verify both entities have the same unit_of_measurement and has_sum before merging.
Check for overlapping timestamps — if both old and new have records for the same period, you'll need to delete the duplicates before merging.
After merging, restart Home Assistant for changes to take effect.

5.6 Counter Reset Not Detected¶

Description | Causes | Manifestation | Detection | Fix

Description A total_increasing counter reset to zero, but the statistics system didn't detect it, resulting in negative or missing consumption data.

Causes

Reset was too small (< 10% threshold)
Counter decremented instead of resetting (hardware issue)
Statistics compiler wasn't running during reset
Database wasn't updated with last_reset timestamp
Sensor temporarily reported unavailable during reset

Counter Reset Manifestation

Negative hourly consumption values in energy dashboard
Sum stops increasing or shows incorrect totals
Bar chart shows no consumption when there should be
State value is lower than previous, but sum didn't adjust

Example:

Counter readings:
10:00 → state: 1250 kWh, sum: 1250 kWh
11:00 → state: 1255 kWh, sum: 1255 kWh (+5 kWh consumption) ✓
12:00 → state: 5 kWh,    sum: 1255 kWh (reset not detected!)
13:00 → state: 8 kWh,    sum: 1258 kWh (+3 kWh consumption) ✓

Expected at 12:00: sum should handle reset gracefully
Actual: sum froze, hourly consumption = 0

Counter Reset Detection

-- Find potential missed resets
SELECT
  datetime(start_ts, 'unixepoch', 'localtime') as period,
  state,
  LAG(state) OVER (ORDER BY start_ts) as previous_state,
  sum,
  LAG(sum) OVER (ORDER BY start_ts) as previous_sum,
  CASE
    WHEN state < LAG(state) OVER (ORDER BY start_ts) * 0.9
         AND sum = LAG(sum) OVER (ORDER BY start_ts)
    THEN '⚠️ MISSED RESET'
    ELSE 'OK'
  END as reset_check
FROM statistics
WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.energy_total')
ORDER BY start_ts DESC
LIMIT 50;

Counter Reset Fix

When a counter reset is missed, the sum freezes at its pre-reset value and subsequent consumption is lost. The fix is to recalculate sum from the reset point onward, adding the post-reset state changes back into the cumulative sum.

Using the example above (reset at 12:00, state dropped from 1255 to 5):

period	state	sum (broken)	sum (fixed)	explanation
11:00	1255	1255	1255	OK — last record before reset
12:00	5	1255	1260	Reset: sum = 1255 + 5 (new state)
13:00	8	1258	1263	sum = 1260 + (8 - 5) = 1263

-- Fix missed counter reset: recalculate sum from the reset point onward
-- Step 1: Identify the pre-reset sum (last good sum before the reset)
-- In this example: pre_reset_sum = 1255, reset happened at start_ts for 12:00

-- Step 2: Update the reset record
-- New sum = pre_reset_sum + new_state_after_reset
UPDATE statistics
SET sum = 1260.0
WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.energy_total')
  AND start_ts = strftime('%s', '2026-01-15 12:00:00');

-- Step 3: Recalculate all subsequent records
-- For each record after the reset, sum = previous_sum + (state - previous_state)
-- This must be done sequentially, record by record, or with a cumulative window:
UPDATE statistics
SET sum = 1260.0 + (state - 5.0)
WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.energy_total')
  AND start_ts > strftime('%s', '2026-01-15 12:00:00');

Simplified example

The Step 3 query above works when state is a monotonically increasing counter (each record's consumption = state - state_at_reset). For counters with multiple resets or complex patterns, you may need to recalculate each record individually using a script or spreadsheet.

Important

Always work on a backup copy of the database first.
Verify the pre-reset sum value is correct before recalculating.
After fixing, check the energy dashboard to confirm consumption values look reasonable.
If many records need fixing, consider using the HA developer-tools/statistics "Adjust sum" feature instead of manual SQL.

5.7 Wrong Mean Type (Circular vs Arithmetic)¶

Description | Causes | Manifestation | Detection | Fix

Description Non-angular data is being processed with circular mean, or angular data with arithmetic mean.

Causes

Incorrect device_class configuration
Template sensor without proper device_class
Integration bug assigning wrong device_class
Manual database modification error

Wrong Mean Type Manifestation

Angular sensors show impossible mean values
Wind direction mean of 520° (should be 0-360°)
Compass heading with negative values
Non-angular sensors averaged incorrectly
Temperature treated as circular (rare but possible configuration error)

Example:

Wind Direction Sensor with mean_type=1 (arithmetic) - WRONG:
0° + 350° + 340° = 690° / 3 = 230°  ← WRONG! (should be ~350°)

Wind Direction Sensor with mean_type=2 (circular) - CORRECT:
0° + 350° + 340° → vectors → 350°  ← CORRECT!

Wrong Mean Type Detection

-- Check mean_type matches device_class expectations
SELECT
  sm.statistic_id,
  sm.mean_type,
  CASE sm.mean_type
    WHEN 0 THEN 'None'
    WHEN 1 THEN 'Arithmetic'
    WHEN 2 THEN 'Circular'
  END as mean_type_name,
  -- Check if statistic_id suggests angular data
  CASE
    WHEN (sm.statistic_id LIKE '%direction%'
          OR sm.statistic_id LIKE '%bearing%'
          OR sm.statistic_id LIKE '%heading%'
          OR sm.statistic_id LIKE '%azimuth%')
         AND sm.mean_type != 2
    THEN '⚠️ Should be circular'
    WHEN sm.mean_type = 2
         AND sm.statistic_id NOT LIKE '%direction%'
         AND sm.statistic_id NOT LIKE '%bearing%'
    THEN '⚠️ Should NOT be circular'
    ELSE 'OK'
  END as validation
FROM statistics_meta sm
WHERE sm.mean_type IN (1, 2);

Wrong Mean Type Fix

The fix has two parts: correct the mean_type in metadata, and deal with the incorrectly computed historical statistics.

Step 1: Fix the mean_type in metadata

-- Change mean_type to circular (2) for a wind direction sensor
UPDATE statistics_meta
SET mean_type = 2
WHERE statistic_id = 'sensor.wind_direction';

Step 2: Delete incorrect historical statistics

The existing mean, min, and max values were computed with the wrong averaging method and cannot be corrected with a simple SQL update (circular mean requires trigonometric functions not available in SQLite). The safest approach is to delete the incorrect records and let HA rebuild them going forward.

-- Delete statistics computed with wrong mean type
DELETE FROM statistics
WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.wind_direction');

DELETE FROM statistics_short_term
WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.wind_direction');

Note

Historical data will be lost. If the sensor has only been running for a short time, this is acceptable. If you need to preserve history, the only option is to recalculate the circular means externally (e.g., with Python) and update each record individually.

Important

Always work on a backup copy of the database first.
Fix the device_class in your HA configuration before correcting the database, otherwise HA will recreate the wrong mean_type.
After fixing, restart Home Assistant for changes to take effect.

5.8 Negative Values in Total_Increasing¶

Description | Causes | Manifestation | Detection | Fix

Description A total_increasing counter shows negative state or sum values, which violates the monotonic increase constraint.

Causes

Sensor returned negative value due to hardware error
Template calculation error (e.g., subtraction instead of addition)
Database corruption
Manual statistics injection error
Counter rollover with incorrect handling

Negative Values Manifestation

Validation errors in Developer Tools → Statistics
Energy dashboard shows negative consumption
Bar charts with negative bars
Warning messages in Home Assistant logs
Impossible physical values (negative total energy consumed)

Example:

statistics table:

start_ts	state	sum	Issue
1735574400	1250.5	1250.5	OK
1735578000	-5.2	1245.3	⚠️ Negative state value!
1735581600	8.7	1254.0	Recovered

Negative Values Detection

-- Find negative values in total_increasing sensors
SELECT
  sm.statistic_id,
  datetime(s.start_ts, 'unixepoch', 'localtime') as period,
  s.state,
  s.sum,
  '⚠️ NEGATIVE VALUE' as issue
FROM statistics s
JOIN statistics_meta sm ON s.metadata_id = sm.id
WHERE sm.has_sum = 1  -- Counter type
  AND (s.state < 0 OR s.sum < 0)
ORDER BY s.start_ts DESC;

Negative Values Fix

Negative values in a total_increasing counter are physically impossible (e.g., you can't "un-consume" energy). The fix depends on whether the negative value is a transient glitch or a persistent error.

Single glitch record (negative state surrounded by valid records): replace with interpolated values, same approach as the spike fix in section 5.2.

-- Replace a single negative-state record with interpolated value
-- Use the average of the previous and next sum values
UPDATE statistics
SET state = (
  SELECT (prev.sum + next.sum) / 2.0
  FROM statistics prev, statistics next
  WHERE prev.metadata_id = statistics.metadata_id
    AND next.metadata_id = statistics.metadata_id
    AND prev.start_ts < statistics.start_ts
    AND next.start_ts > statistics.start_ts
  ORDER BY prev.start_ts DESC, next.start_ts ASC
  LIMIT 1
),
sum = (
  SELECT (prev.sum + next.sum) / 2.0
  FROM statistics prev, statistics next
  WHERE prev.metadata_id = statistics.metadata_id
    AND next.metadata_id = statistics.metadata_id
    AND prev.start_ts < statistics.start_ts
    AND next.start_ts > statistics.start_ts
  ORDER BY prev.start_ts DESC, next.start_ts ASC
  LIMIT 1
)
WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.energy_total')
  AND start_ts = strftime('%s', '2026-01-15 11:00:00');

Multiple consecutive negative records: it may be simpler to delete them and accept a gap.

DELETE FROM statistics
WHERE metadata_id = (SELECT id FROM statistics_meta WHERE statistic_id = 'sensor.energy_total')
  AND state < 0;

Important

Always work on a backup copy of the database first.
Fix the root cause (sensor config, template error) before correcting the database.
After fixing, verify the sum chain is still monotonically increasing.

5.9 Orphaned Statistics Metadata¶

Description | Causes | Manifestation | Detection | Fix

Description Entries in statistics_meta table have no corresponding records in statistics or statistics_short_term tables.

Causes

Statistics were manually deleted but metadata wasn't
Purge operation incomplete or interrupted
Entity created but never generated statistics
Database cleanup tools only cleaned data tables
Statistics generation started but immediately failed

Manifestation

Metadata entries with zero statistics records
Wasted database space (minimal but clutters queries)
Confusion when querying metadata
Gaps between expected and actual statistics count

Example:

statistics_meta entry exists:

id	statistic_id	unit	has_sum
99	sensor.phantom_sensor	kWh	1

But querying statistics:

SELECT COUNT(*) FROM statistics WHERE metadata_id = 99;
Result: 0  ← No statistics ever recorded!

Detection

-- Find orphaned metadata
SELECT
  sm.id,
  sm.statistic_id,
  sm.source,
  sm.unit_of_measurement,
  COALESCE(s_count.count, 0) as long_term_count,
  COALESCE(ss_count.count, 0) as short_term_count,
  CASE
    WHEN COALESCE(s_count.count, 0) = 0
         AND COALESCE(ss_count.count, 0) = 0
    THEN '⚠️ ORPHANED'
    ELSE 'OK'
  END as status
FROM statistics_meta sm
LEFT JOIN (
  SELECT metadata_id, COUNT(*) as count
  FROM statistics
  GROUP BY metadata_id
) s_count ON sm.id = s_count.metadata_id
LEFT JOIN (
  SELECT metadata_id, COUNT(*) as count
  FROM statistics_short_term
  GROUP BY metadata_id
) ss_count ON sm.id = ss_count.metadata_id
WHERE COALESCE(s_count.count, 0) = 0
  AND COALESCE(ss_count.count, 0) = 0;

Fix

Since there are no statistics records associated with these metadata entries, simply delete the orphaned rows from statistics_meta.

-- Delete orphaned metadata entries (those with no statistics in either table)
DELETE FROM statistics_meta
WHERE id NOT IN (SELECT DISTINCT metadata_id FROM statistics)
  AND id NOT IN (SELECT DISTINCT metadata_id FROM statistics_short_term);

Important

Always work on a backup copy of the database first.
After deleting, restart Home Assistant for changes to take effect.

Previous « Part 4: Best Practices and Troubleshooting Next Part 6: Statistics Migration Guideline »
